- FK-5-1-12 (Novec 1230) puts fire out mainly by absorbing heat, so it works at a low concentration and leaves no residue.
- A very wide safety margin and a global warming potential close to 1 make the fluid a strong fit for occupied rooms.
- Novec and FM200 are both safe for occupied spaces; Novec wins on environmental profile, FM200 on recharge availability.
- Confirm agent supply and budget the recharge before buying, because 3M's PFAS wind-down affected long-term pricing.
- Any clean-agent system still needs the enclosure integrity test and DCD-compliant maintenance to protect the room.
Stand in a Dubai server room when the suppression alarm trips and you have about ten seconds before the gas fills the space. What happens to the air in those seconds is the whole argument for a Novec 1230 system Dubai facility managers now put in rooms people actually work in. The fluid discharges, strips heat out of the fire, and leaves a wide gap before the concentration climbs anywhere near a level that could harm the people still walking to the door.
No residue. Nothing to wipe off the racks.
How FK-5-1-12 Pulls Heat Out of a Fire

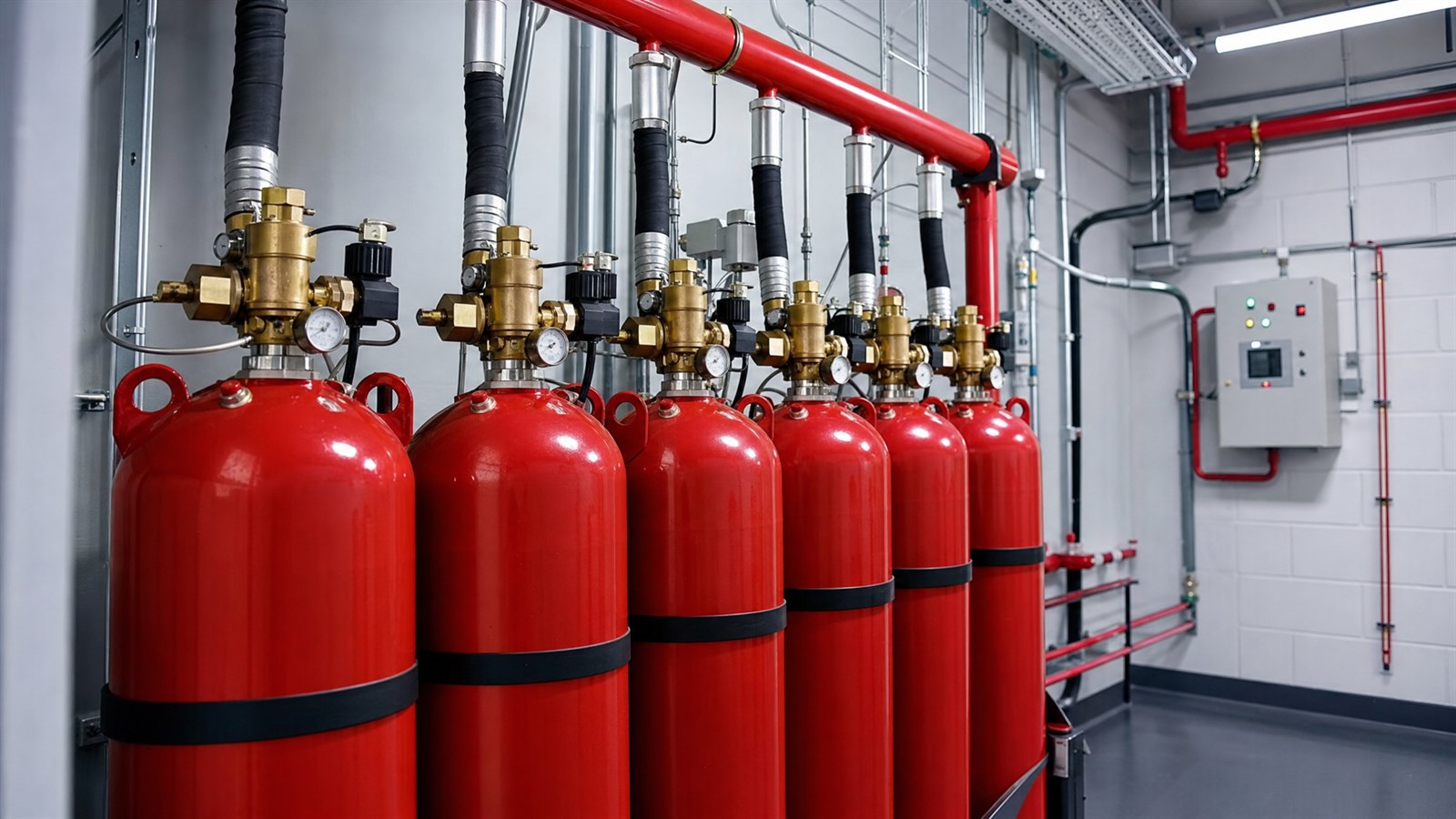

Novec 1230 is 3M's trade name. The agent itself is FK-5-1-12, a fluoroketone fluid — colourless, electrically non-conductive, stored as a liquid under nitrogen pressure in steel cylinders.
Here is the part that surprises people. At room temperature it sits as a gentle liquid that boils just above the ambient of a Dubai plant room, so on discharge it flashes to vapour and total-floods the enclosure in seconds. Manufacturers famously demonstrate this by pouring the liquid over live electronics with no damage.
It puts fire out mainly by physics, not chemistry. The vapour has a high heat capacity, so it soaks up thermal energy fast enough to drop the reaction below the temperature it needs to keep burning. Cool the fire enough and it stops. Because the mechanism is largely physical, the fluid does its job at a fraction of the concentration an inert-gas system needs. Fewer cylinders, a smaller footprint in a plant room where space is already tight. That difference alone can decide whether a scheme fits the space you have.
Why a Novec 1230 System Dubai Owners Pick Suits Occupied Rooms
Two numbers decide whether a clean agent belongs in a room with people in it: the concentration that extinguishes the fire, and the concentration at which health effects start. The gap between them is the safety margin, and NFPA 2001, the Standard on Clean Agent Fire Extinguishing Systems, sets how that margin has to be respected in design.
FK-5-1-12 has one of the widest margins of any halocarbon clean agent. Its extinguishing concentration sits well under the level where health effects begin, which is exactly why it reads well for control rooms, trading floors, labs and archives where staff may be present when it dumps.
Then there is the environmental side. The fluid has a global warming potential close to 1 and an atmospheric lifetime measured in days, not decades. For an owner weighing a system that might sit charged for twenty years, that profile matters.
QSERV is DCD-approved and surveys the enclosure, sizing and interlocks before you commit to an agent.
Novec vs FM200 for a Room People Sit In
Both are safe for occupied spaces at design concentration. The differences sit around them.
| Factor | Novec 1230 (FK-5-1-12) | FM200 (HFC-227ea) |
|---|---|---|
| Agent family | Fluoroketone fluid | HFC gas |
| Extinguishes by | Mainly heat absorption | Heat absorption plus chemical action |
| Occupied-room safety | Very wide margin | Wide margin |
| Global warming potential | Close to 1 | In the thousands |
| Atmospheric lifetime | Days | Decades |
| Agent volume / footprint | Slightly more agent, larger cylinders | Compact cylinder count |
| Recharge supply | Fewer sources, watch lead time | Widely stocked |
For the FM200 side of that table in depth, our FM200 suppression guide covers how the HFC agent works and where the UAE code calls for it. For switchgear and LV rooms specifically, electrical room fire suppression walks through the interlocks either agent needs.
The agent is the easy decision. The recharge plan is the one owners forget.Budget the refill before you sign
The Recharge and Availability Reality
This is the honest trade-off. FK-5-1-12 typically costs more per kilogram than FM200, and the supply picture got more complicated after the fluid's original maker announced it would wind down its PFAS-based product lines. Other manufacturers still produce the agent, but long-term recharge pricing and lead time are now a real line item, not an afterthought.
In practice, recharge is what catches owners out on handover. The cylinders arrive full and then sit ignored until a discharge, accidental or real. That is the moment the lead time to source more fluid and re-arm the room shows up, and it runs longer than an FM200 refill. Ask your contractor, before you buy, where they source the agent and what a full recharge costs today.
The rest of the maintenance mirrors any total-flooding system the UAE Fire and Life Safety Code of Practice, enforced by Dubai Civil Defence, expects: cylinder weighing, interlock proving, detection tested end to end, and the enclosure integrity test that confirms the room still holds the agent for the required soak time.
The Call for a New Occupied Install
Here is the stance. For a new system going into a room people work in, where the environmental profile and the safety margin carry weight, the fluid is the stronger pick over FM200 — as long as you confirm agent supply and budget the recharge up front. If those two boxes are not ticked, FM200 remains the lower-risk buy on availability alone.
Whichever agent wins your room, the design has to start with the enclosure, not a catalogue. Our fire suppression services survey the space, size the system to NFPA 2001, and prove the interlocks before commissioning.
One practical next step. Get the room volume, occupancy and last integrity test in front of a DCD-approved contractor and ask for both a Novec and an FM200 proposal. Compare the safety margin, the environmental profile and the ten-year recharge cost side by side. The right agent is the one that still holds when the alarm goes off.
