A Novec recharge in the UAE is triggered by two separate readings taken during routine cylinder checks. NFPA 2001 requires action when agent weight falls more than 5 percent below the nameplate figure. It also requires action when temperature-corrected pressure drops more than 10 percent. Either trigger alone is enough to take the cylinder out of service for recharging at an authorised station.
This guide explains how the semiannual check works for Novec 1230, also known by its chemical name FK-5-1-12. It covers cylinder retest rules and what happens at an authorised filling station. It also explains why agent supply now needs confirming before a recharge date is set. Use it alongside your latest suppression service report and cylinder schedule.
When does a Novec 1230 cylinder need recharging?
A Novec 1230 cylinder needs recharging when measured agent loss exceeds 5 percent of the nameplate weight. It also needs recharging when temperature-corrected pressure loss exceeds 10 percent. Any discharge, whether accidental or during a fire, requires a full recharge too.
NFPA 2001 Section 11.3 requires agent quantity and pressure checks at least every six months. The UAE Fire and Life Safety Code of Practice requires clean agent systems to follow NFPA 2001. A low weight with no discharge record points to slow leakage that must be investigated before refilling.
Quick Answer
Recharge a Novec 1230 cylinder when agent loss exceeds 5 percent or corrected pressure loss exceeds 10 percent. Any discharge, accidental or real, requires a full recharge under NFPA 2001.
How is the semiannual Novec check carried out?

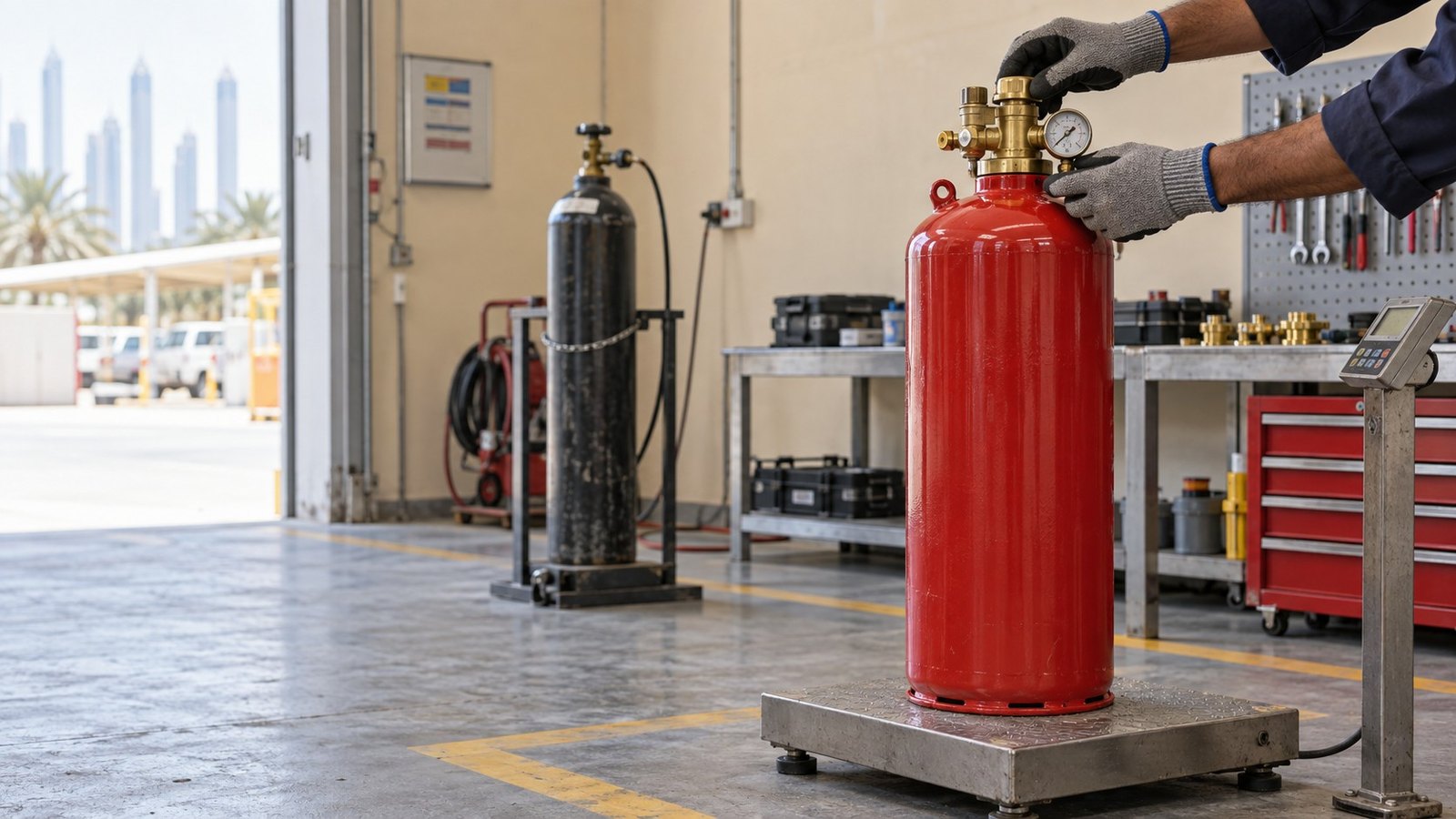

The technician weighs each cylinder and compares the measured mass with the agent mass on its nameplate. The pressure gauge is then read and corrected for the ambient temperature at the time. Both results are recorded, because each has its own trigger.
A scale confirms how much liquid agent remains, while the gauge reflects the nitrogen pressure above it. A cylinder can pass on weight and still fail on corrected pressure, or the reverse. The service record should show nameplate mass, measured mass, gauge reading, ambient temperature and corrected pressure.
Quick Answer
A semiannual Novec check weighs each cylinder against its nameplate mass and reads temperature-corrected pressure. Record both results separately, because either reading can trigger a full recharge on its own.
Can Novec 1230 still be sourced after 3M's exit?
3M announced in December 2022 that it would exit PFAS manufacturing by the end of 2025. That ended 3M's own production of the Novec-branded fluid used in clean agent systems. It did not make every installed FK-5-1-12 system obsolete overnight.
Agent may still be available from distributor inventory, reclaimed stock or other manufacturers of FK-5-1-12 fluid. Availability for a specific cylinder on a specific date is not guaranteed, however. Ask the system manufacturer or authorised filling station to confirm the exact agent and quantity before committing to a recharge date.
Quick Answer
3M ended all of its PFAS manufacturing, including the Novec-branded fluid, by the end of 2025. Installed FK-5-1-12 systems remain usable, but confirm agent availability before booking any cylinder recharge.
What happens during a Novec cylinder recharge?
At an authorised station, technicians check the cylinder's valve and qualification status before any filling begins. They recover remaining agent where applicable, then fill the specified liquid agent mass. Dry nitrogen is then added to the manufacturer's specified pressure for that system.
FK-5-1-12 is stored as a liquid with a nitrogen cushion, and manufacturers use different pressure configurations. Minimax, for example, documents 25, 42 and 50 bar systems, which are not interchangeable field choices. After filling, the station verifies mass and corrected pressure, then leak tests the valve and connections.
Quick Answer
A Novec recharge starts by checking the cylinder's qualification status and filling the specified agent mass. Nitrogen is added to the manufacturer's pressure before mass, pressure and leaks are verified.
What should the owner approve before removal?
Before any cylinder leaves site, the owner should approve its identification, authorised destination and requalification check. The approval should also cover the required agent mass, pressure configuration and return sequence. Recommissioning scope belongs in the same approval, not a later email.
NFPA 2001 Section 11.6.1 says a cylinder cannot be recharged once its requalification period has elapsed unless retested. Containers continuously in service also need an external visual inspection every five years. If the room changed while cylinders were away, arrange a room integrity test before relying on the system.
Quick Answer
Before any cylinder removal, the owner should approve its identity, authorised station, requalification status, agent mass, pressure configuration and recommissioning scope. Confirm agent availability separately for the planned filling date.
Frequently Asked Questions
What is Novec 1230?
How often should Novec cylinders be checked?
What weight loss triggers a Novec recharge?
What pressure loss triggers a Novec recharge?
Is Novec 1230 banned in the UAE?
Can any gas supplier recharge a Novec cylinder?
How long does a Novec recharge take?
Should we keep a spare charged Novec cylinder?
Can a Novec system be converted to another agent?
Does QSERV handle Novec recharging in the UAE?
Main Takeaways
A Novec 1230 cylinder needs recharging when agent loss exceeds 5 percent or corrected pressure loss exceeds 10 percent. NFPA 2001 requires both readings, recorded separately, at least every six months for each cylinder. Cylinders past their stamped requalification date cannot be recharged until they are retested. After 3M's PFAS exit, confirm agent availability before setting any firm recharge date.
Your next step for Novec cylinders
Novec recharging now involves two questions: whether a cylinder needs agent, and where that agent comes from. The first is answered by semiannual weight and pressure records. The second needs a conversation with your system manufacturer or filling station before an emergency arrives. Owners who plan supply ahead avoid long impairment periods and rushed decisions after a discharge.
Read the nameplate agent weight on every Novec cylinder and compare it with the last measured weight on file. Any gap above 5 percent needs a recharge plan and an agent booking now. Ask your supplier to confirm FK-5-1-12 availability and lead time in writing. For ongoing support, review our Novec 1230 suppression service and the inert gas refilling guide for comparison.
