- Air-sampling systems actively draw room air to a highly sensitive detector, catching smoke long before a spot detector would alarm.
- They earn their cost where airflow dilutes smoke or a late alarm is catastrophic: server and telecom rooms, high-bay warehouses, atriums and cold stores.
- For standard offices and low-airflow spaces, well-placed addressable point detectors do the job for far less money.
- NFPA 72 recognises air-sampling detection and Dubai Civil Defence approves it under the UAE Fire and Life Safety Code of Practice.
- Maintenance is the make-or-break: pipe cleaning, filter changes, airflow checks and detector sensitivity calibration, all documented for DCD.
A high-bay warehouse in Dubai can stack thousands of pallets under a roof twelve metres up. By the time smoke from a smouldering pallet climbs that far, it has cooled, spread, and thinned across the whole roof void — often too dilute to trip a ceiling smoke head until the fire is already well set. That lag is the reason VESDA aspirating smoke detection Dubai projects exist: air-sampling systems that actively draw air to a highly sensitive detector and flag trouble while the fire is still a wisp.
Point detectors wait for smoke to come to them. Air-sampling goes and gets it.
How Air-Sampling Detection Actually Works

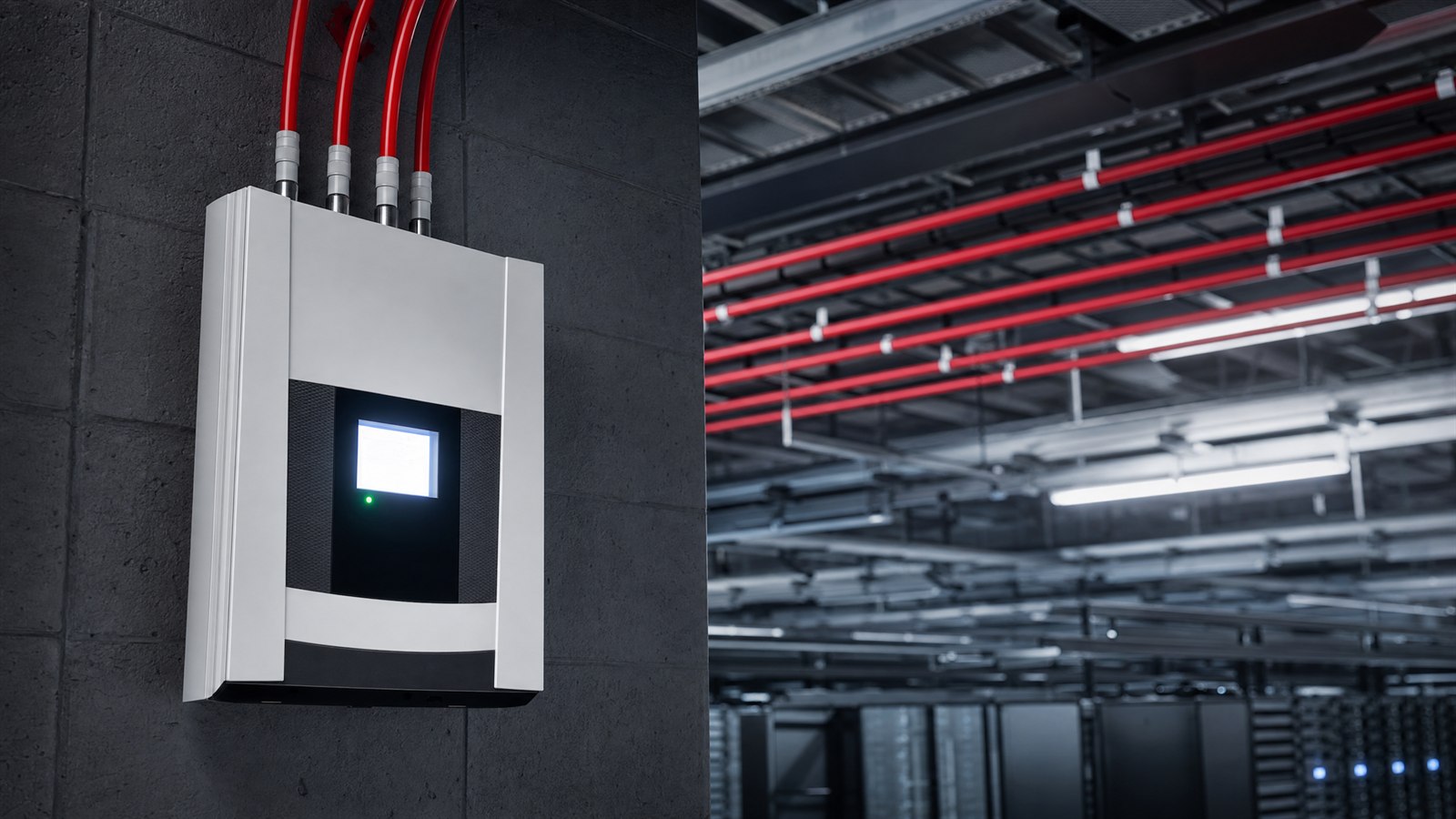

An aspirating system is a small fan, a sensitive detector, and a network of pipes.
The sampling pipe network runs through the space you want to protect, drilled with sized holes at set intervals. An aspirator continuously pulls air from every hole back to a central detection chamber, where a laser or LED sensor reads it for the faintest smoke particles. Because the sensor sits in a sealed chamber and reads a constant, concentrated sample, it can pick up combustion products at levels far below what a spot detector needs to alarm.
That sensitivity buys stages. Most air-sampling detectors signal several escalating thresholds, a quiet Alert, then Action, then Fire, so staff can investigate a warm bearing or an overheating drive long before anything triggers evacuation or a suppression release.
One system. Multiple warnings, in order.
VESDA Aspirating Smoke Detection Dubai: Where It Earns Its Cost
Here is the stance. Air-sampling detection is worth its premium in exactly the places where ordinary point detectors struggle, and it is over-specified almost everywhere else.
Four room types justify it:
- Server and telecom rooms. Constant cooling airflow sweeps early smoke away from ceiling heads before they respond. Pulling air to the sensor beats waiting for it, which is why very-early-warning detection sits at the front of our telecom equipment room fire suppression approach.
- High-bay warehouses and atriums. Tall volumes let smoke stratify and dilute; a sampling pipe can be run at several heights to catch it on the way up.
- Cold stores. Condensation and low temperatures blind and ice up standard detectors, so the detector sits outside the cold envelope with only the pipe inside.
- Clean rooms and high-airflow production. High air-change rates thin smoke to the point that spot detection is nearly useless.
The trade-off is honest. An air-sampling system costs several times more than an equivalent point-detector layout up front, the pipe network has to be designed around the room's real airflow, and it carries a maintenance load that never goes away. For a standard office, corridor, or low-airflow store, well-placed addressable point detectors do the job at a fraction of the cost, as our smart fire alarm systems guide covers. Paying for very-early-warning detection where smoke behaves normally is money spent on a problem you do not have.
QSERV's DCD-approved team surveys the space, models the airflow, and tells you straight whether aspirating detection earns its place.
What NFPA 72 and Dubai Civil Defence Require
Air-sampling detection is not a loophole around the code. It sits inside it.
NFPA 72, the National Fire Alarm and Signaling Code, recognises air-sampling smoke detection as a detector type and sets out how its sensitivity is classified and how it must be tested and maintained. In Dubai, design and installation run through Dubai Civil Defence and the UAE Fire and Life Safety Code of Practice, which a DCD-approved contractor works to from plan submission through commissioning.
That matters at the design stage. Pipe layout, hole spacing, and detector sensitivity all have to be modelled and justified. A transport-time calculation shows how long a sample takes to reach the detector, and it has to stay inside code limits. Get the airflow assumptions wrong and the system either nuisance-alarms or misses the fire it was bought to catch.
> The sensitivity that makes air-sampling valuable is the same sensitivity that punishes a sloppy design. Airflow is the whole game.
Maintenance the Sampling Pipe Network Needs
This is where an air-sampling system quietly fails if nobody looks after it.
A sealed detector drifts. Filters clog. Sampling holes collect dust, and in a warehouse or workshop the pipe itself gathers a fur of particulate that changes how air moves through it. NFPA 72 calls for periodic testing, and for an aspirating system that means more than a puff of canned smoke at one point.
In practice, the systems we get called to recommission usually carry two faults: a blocked or drifted detector nobody calibrated, and sampling holes that were never cleaned since the day of install. Both hollow out the early warning the client paid extra for, and neither shows up unless someone tests properly.
A proper visit covers the aspirator and airflow monitoring, filter condition, detector sensitivity verified against its rated setting, and a smoke test introduced at the far end of each pipe run to prove transport time end to end. Records go to DCD.
Skip it, and you own a very expensive smoke alarm that no longer warns early.
So before you spec air-sampling for a new fit-out, or renew an existing one, ask two plain questions: does this room's airflow actually defeat point detectors, and is there a plan and a budget to keep the sampling pipe network calibrated for its whole life? If both answers are yes, it earns its place. QSERV's DCD-approved fire and MEP services team can survey the space, model the pipe layout against the UAE code, and quote the maintenance alongside the install.
